Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

Ask Lasest Price
Price :	$195/sets >=1 sets

Add to Cart

Product Details
Company Profile

Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

UL SIL3 Approved Wall Mounted NH3 Industrial Use Gas Detector

Product Description

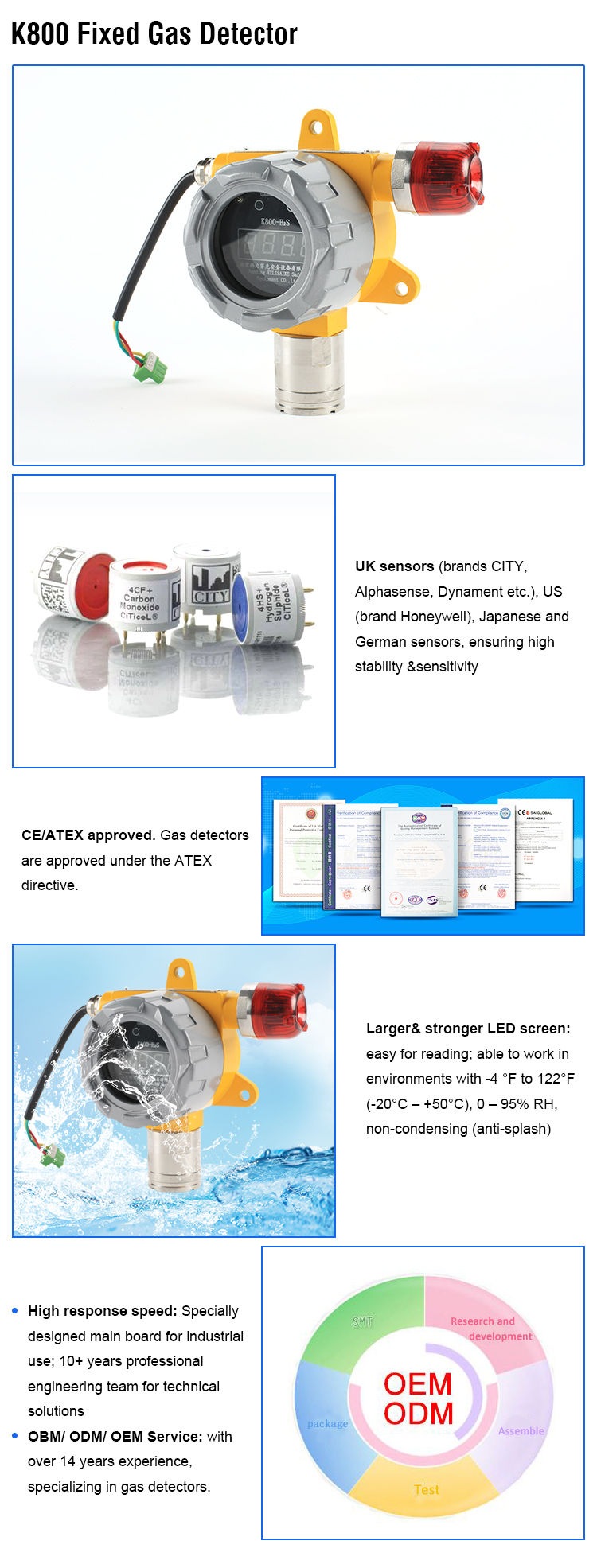

K800 Series Fixed Gas Transmitter provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors—and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.

>>>Key Features

1) Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.

2) Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.

3) Connecting 3 - core shield cable, 3x1.0mm.

4) Special transmitter mounting kit making the installation and performing calibration easier and better

5) Ambient temperature: -20°C~+50°C

6) Explosion-proof grade: ExdIICT6

7) High sensitivity, short response time and good stabilization
Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

Product Parameters

Item	Fixed Gas Detector
Sensor Cell	UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors
Lifetime of detector	2 – 5 years
Sample mode	Diffusion
Output signals	4-20mA/RS485
Operating voltage	24V DC
Display	LCD display
Transmission cable	Three core shield cable
Ambient temperature	- 40 ° C ~ + 50 ° C
Relative humidity	15~95%RH(non condensation)
Working Pressure	86~106Kpa
Detection precision	±5%FS
Net Weight	<1kg
Explosion-proof grade	Exd II CT6

Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

product catalog

Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

K60B K60 K60-IV K60-IV-P

Fixed/Wall-Mounted Gas Detector (Controller)

K800 K500 K700 K1000

Online Gas Analyzer ans CEMs

KF200 KF100 WT602 CEMs AQMS

Breathing Safety Apparatus

EEBD SABA SCBA FBCAR PAPR

Other product

Customizable Fixed Gas Monitor NH3 Wall Mounted Type For Industrial Use

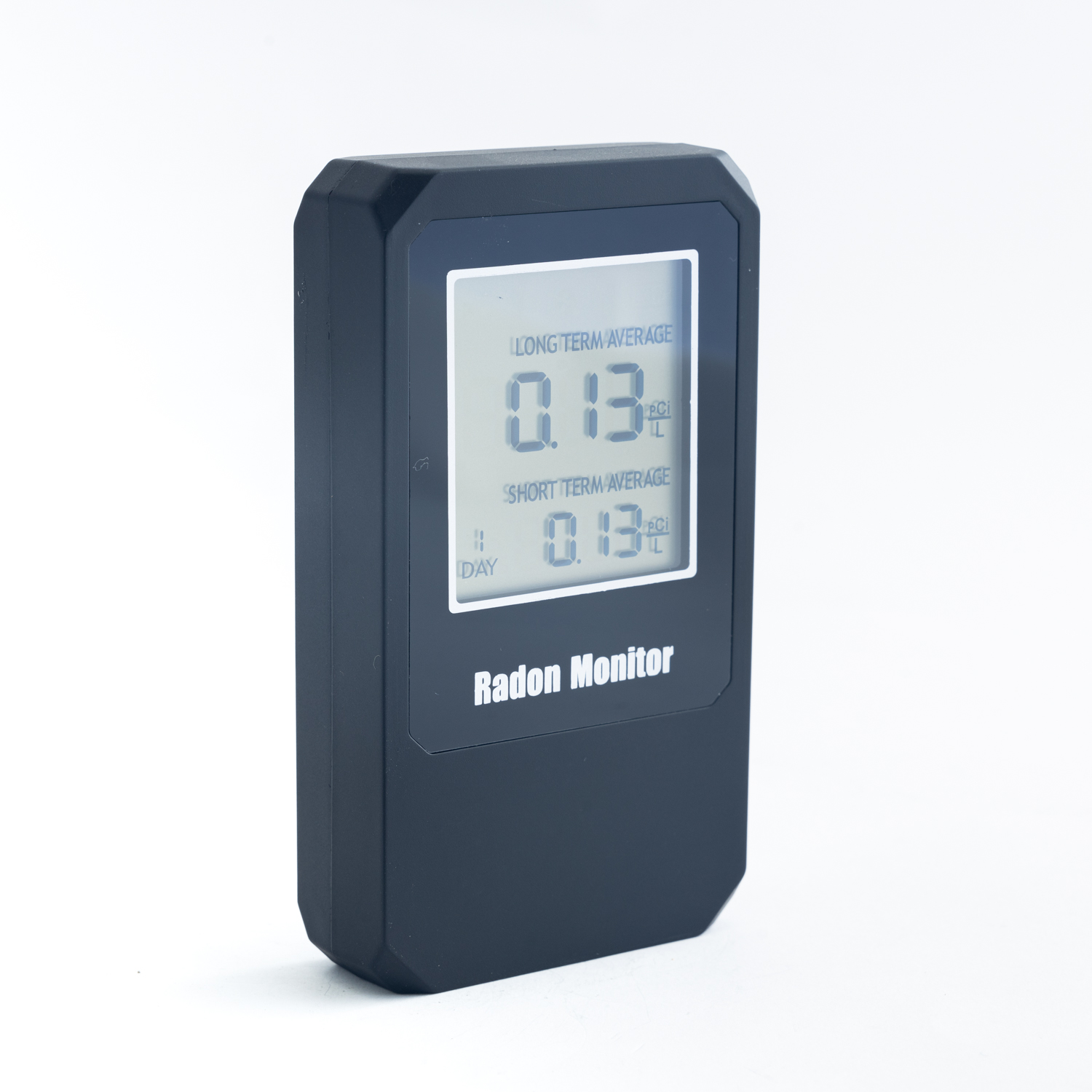

Radon BW gas detector MXCL Gas sensor
