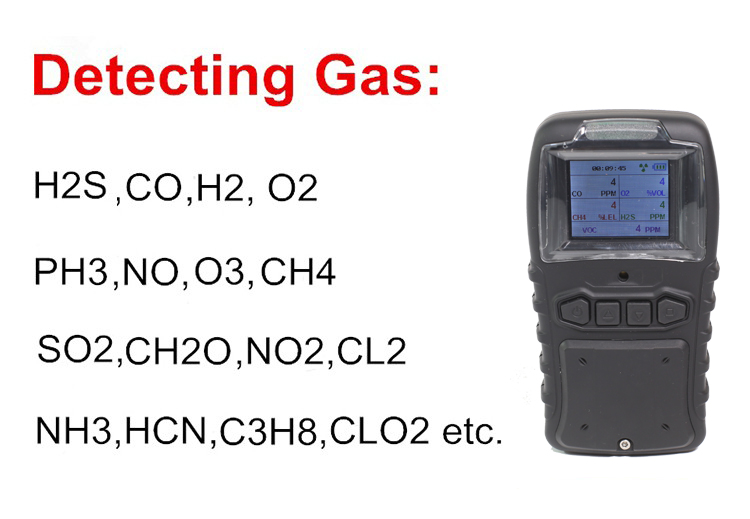

2022 Pump suction portable multi gas detector
(with built-in pump/Diffusion or with external pump type)
K60-V is a full-featured, compact, up to five sensor gas detector
for oxygen, combustibles, hydrogen sulfide, carbon monoxide, sulfur
dioxide or VOCs etc. (gas types can be optional customized based on clients’ requests).Key features include easy-to-operate design, easy to identify color screen 4 digits LCD
display, historic data storage, a water-resistant case and high
sensitivity sensors.
Key Features
1) Light weight and small size design(≤300g), easy to operate;
2) Excellent built-in 90dB audible vibration alert for use in areas of
high ambient noise applications;
3) Strong, protective, concussion-proof shockproof design for normal
working in harsh environments;
4) Easy access to pump, sensors, filter and battery compartment
without exposing electronic components to potential damage;
5) Rechargeable lithium battery for 10+ hours continuously operation;
6) Intuitive simple-to-operate four-button;
7) With built-in pump or with compatible pump
8) Color screen 2+2 digits LCD display presenting real time gas
concentration data and corresponding gas types;
9) Full featured self-test: sensors, lithium battery, circute
integrity and Triple alarms (audible, visual, vibrating);
10) Accessories: operator’s manual, detection probe, calibration hose,
USB cable, charger and conversion plug;
11) CERTIFICATIONS: CE, CMC, Ex, MA
Certifications:
CE certificate Explosionproof certificat
ISO certificate
Product Parameters
Technical Specifications |
Item: | portable multi-gas detector |
Model NO.: | K60-V |
Sensor Cell: | UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand
Honeywell), Japan and Germany sensors, ensuring high stability
&sensitivity |
Sensor service life: | 2 years for electrochemistry sensor and catalytic combustion
sensor, 5 years for Infrared or UV sensor |
Operating voltage: | 3.7V Rechargeable lithium battery, continuously work for 10+ hours |
Data interface: | USB |
Display: | Color screen 2+2 digits LCD display |
Data Storage: | 9600pcs data record stock. Can be uploaded to PC |
Alarm buzzer: | 90db |
Alarm mode: | Acousto optic alarm |
Alarm error: | ≤±3% |
Ambient temperature: | - 20 ° C ~ + 50 ° C |
Relative humidity: | 15~95%RH(non condensation) |
Material: | ABS, slip silicone |
Detecting method: | diffusion or pump |
Pumping tube: | 150cm |
Dimension(mm): | 133(L)*70(W)*36 (H)mm |
Explosion-proof grade: | ExdII CT3 |
Weight : | 0.5kg(with charger and detection probe) |
Gas Types | Detection Range | Resolution | Response Time | Alarm Values |
CO | 0-1999ppm | 1ppm | T90≤25s | customize |
H2S | 0-100 ppm | 0.1 ppm | T90≤30s | customize |
O2 | 0-30%vol | 0.1%vol | T90≤15s | customize |
CH4/LEL | 0-100%lel | 0.1%lel | T90≤20s | customize |
PID (VOCs≤10.6eV) | 0-1999.9ppm | 0.1 ppm | T90≤20s | customize |
Package: | carton |
Pcs/ctn: | 1pc/ctn |
Ctn size: | 190x132x110mm |
Payment terms: | T/T |
Warranty: | 1 year |
Measurable Gas Meter
Mark: Customized type 2-gas detector, 3-gas detector and 4-gas
detector is welcome.
