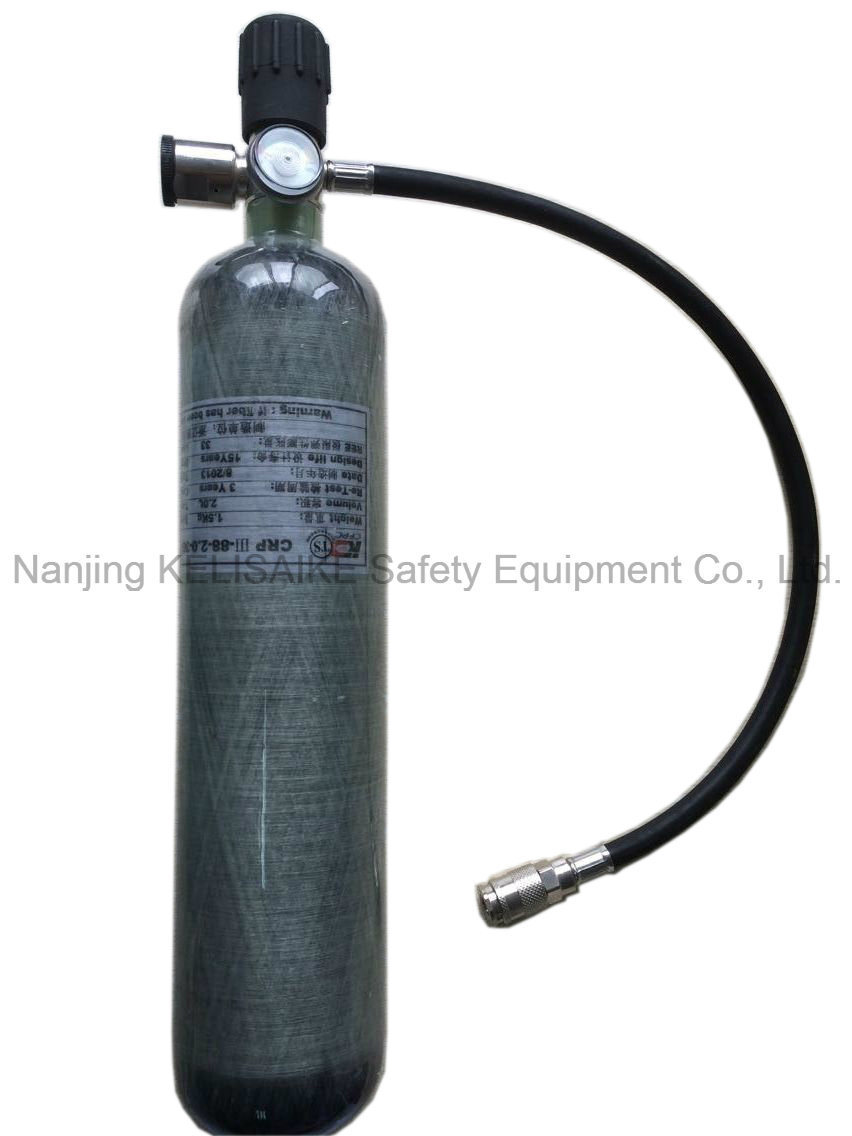

KL99 Carbon Fiber Composite Cylinder

Carbon fibre cylinder has the advantages of high strength, light weight, corrosion-resistant and anti-shocking.

Carbon fibre composite cylinder, inter layer is made of high intensity aluminum alloy

fully wrapped with carbon fiber composite. The glass fiber surface screw is M18*1.5.

KL99-A01 full mask

• Three dimension spherical visor. The visual field could reach 91% with great optics. The lens has been rigidified and anti-fog processed thus can be without fog on surface for long time.
• Fit for people's face, comfortable donning and good leak tightness.
• Plug-in structure to quick connect with demand valve.
• Leak tight mask is made of high quality flame resistant silicon rubber, oronasal cover use top silicon rubber, soft and high temperature resistant.
• Flame resistant reticulated hood and strap are easy to wear.
• Adopt high-intensity sound transmission diaphragm.
• Oronasal guard suitable for wearers, decrease the inhalation carbon dioxide content.

KL99-A05 air supply valve

• Demand valve, with small size, can be inserted mask in 360o promptly. Gas supply is above 500L/min.
• Streamlined and elegant design, do not obstruct view
• Manuel close valve has small resistance for opening
• Small breathing resistance to make respiration comfortable
• Easy operation and use
• Ensure safe air supply by using manual force air supply button
• Outer shell uses flame resistance high intensity engineering plastics

6. KL99-A06 decompressor

The pressure reducer core adopts advanced technology with a design life of 15 years. The unique maximum gas supply is above 1000L/min, ensuring the user's enough respiratory volume.

The main parts that connected with the reducer:

• Single or double cylinder
• The medium pressure hose whose function is to supply air to the demand valve
• The high pressure hose connected with the pressure indicator

Gas cylinder and cylinder valve

Y shape design, with safe self lock device to prevent inadvertent close due to hard knock or incorrect operation.Unscrew the switch handwheel by rotating in the counterclockwise direction, it is regarded as the open condition and close vice versa. There is safety diaphragm set in cylinder valve, with explosion pressure at (37-45)MPa to prevent the deformation and explosion of cylinder due to inner high pressure.

>>> Company Information



Nanjing KELISAIKE is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China.

Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan.

Core products and services are portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc.

Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
