CE Approved Fire Fighting Equipment SCBA Air Breathing Apparatus
6.8 L or 9 L Cylinder
Product Description
Fire works firing equipment:
The KL99 series positive pressure air breathing apparatus is self-contained open circuit breathing apparatus. As an ideal
personal breathing protector for the fireman and emergency rescuer,
they are widely used in such sectors as fire fighting, chemical
industry, shipping, petroleum, smelting, electricity, warehouse,
lab, and mine, by firemen and emergency rescuers to perform
efficient rescue and relief work under the conditions of heavy
smoke, poisonous gas, steam, low oxygen, etc.
>>>Fire works firing equipment specification
Service time | ≥60mins at 30L/min |
Overall weight | 9 kg (air not included) |
Material | Carbon fiber composites |
Volume of the gas cylinder | 6.8 L, 9.0 L |
Working pressure | 30 MPa |
Hydrostatic pressure | 45 MPa |
Standard | Q/KJ015-2002 |
Gas | Air |
Type | KL99-6.8L/30 | KL99-9L/30 |
Working pressure(MPa) | 30 | 30 |
Volume of the gas cylinder(L) | 6.8 | 9 |
Max flow(L/min) | 300 | 300 |
Inhalation resistance(Pa) | <588 | <588 |
Exhalation resistance(Pa) | <687 | <687 |
Alarm pressure(MPa) | 4-6 | 4-6 |
Serive time(min) | 60 | 90 |
Overall weight(kg) | 9 | ≤11 |
Alarm voice | ≥90dB | ≥90dB |
A set fire works firing equipment contain with parts as following:
1. KL99-A01 full mask
The full mask is adaptable to fit all different shapes of faces. It
is made of flame-retarded silicone, safe and comfortable to wear.
It is also antifog designed. It allows for a wide field of vision.
And the visor is made of a high impact scratch resistant material,
which prolongs its life by 3-4 times.
2. KL99-A02 backboard
It is designed according to ergonomics to fit different users.The
main body’s weight is only 0.685kg. The tortuosity can be above 90
degree. It is made from a high strength material, which is
chemical, high temperature and impact resistant.

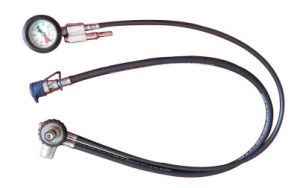

3. KL99-A03 warning whistle and pressure gauge
The warning whistle is integrated with pressure gauge and located
on the chest after donning. It will give a continuous 90dB alarm to
make sure the user can hear it under noisy environment.
The pressure gauge is waterproof and shockproof designed, and it
can be read in the darkness.
4. KL99-A04 backpack
Flexible backpack, equipped with comfortable and detachable
tournure, makes waist and shoulders no oppressive feeling.
Shoulder straps and belt are made of Nomex or KEVLAR,
tear-resistant and flame-retardant. And they together distribute
the weight of the apparatus effectively.
5. KL99-A05 air supply valve
Handhold valve, with small size, can be inserted mask in 360o promptly. Gas supply is above 500L/min.
6. KL99-A06 decompressor
The decompressor core adopts advanced technology with a design life
of 15 years. The unique maximum gas supply is above 1000L/min,
which make sure the user’s enough respiratory volume.

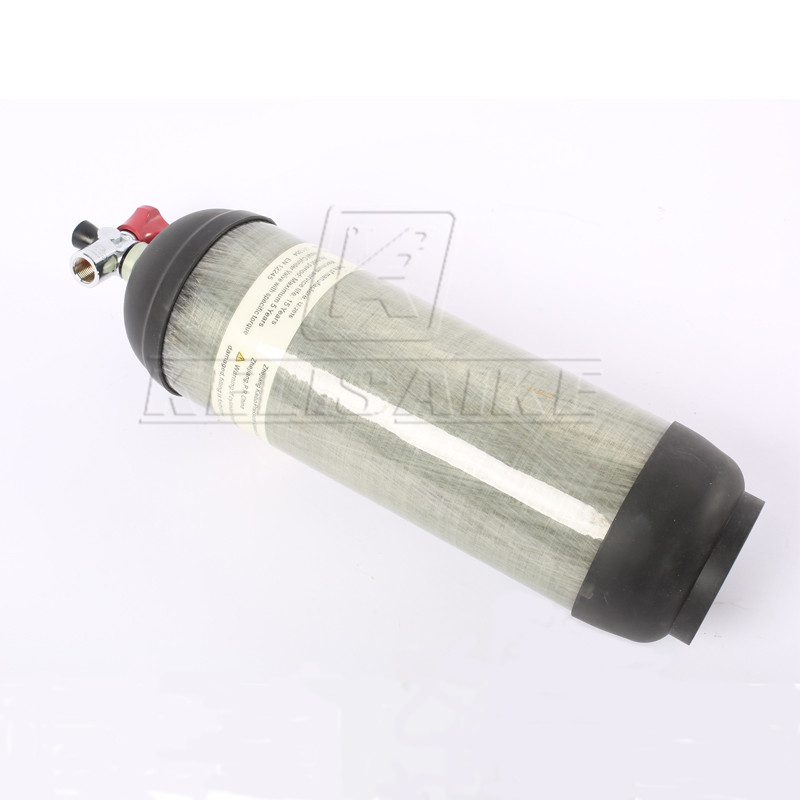

7. Gas cylinder and cylinder valve
Carbon fibre cylinder has the advantages of high strength, light
weight,corrosion-resistant and anti-shocking.
Y-shape self-locking cylinder valve effectively avoid opening the
valve caused by accidental collision or misoperation.
8. Mulfunctional fast join valve
Stainless steel, strong and durable. Traceless design, safe and
reliable.
9. The configuration can be 2L/3L/4.7L/6.8L/9L
Carbon fibre cylinder, internal is made of corrosion-resistant
aluminum alloy, and the middle layer is carbon fibre. The glass
fiber surface screw is M18*1.5.
