Highly Sensitive KF200 20mA Tunable Laser Gas Analyzer TDLAS IP66 Gas Testing

Ask Lasest Price
Brand Name :	KEILISAIKE
Model Number :	KF-200
Supply Ability :	500 Set/Sets per Month
Price :	$5,000.00 - $70,000.00/sets

Add to Cart

Product Details
Company Profile

Highly Sensitive KF200 20mA Tunable Laser Gas Analyzer TDLAS IP66 Gas Testing

KF200 Tunable Laser Absorption Spectroscopy (TDLAS) Online Gas Analyzeranalyzer

The KF200 series laser gas analyzer is developed aiming at industrial on-line analyzing and online environmental monitoring.Based on the semiconductor laser absorption spectroscopy (DLAS) technology, it is developed with features of an integrated design and high level of integration.

There are various types of the KF200 series laser gas analyzer, including in-situ probing type, by-pass type, multi-channel and disc mounted type, etc.

Gases like O₂, CO, NH₃, CO₂, CH₄, H₂O, HC, HF, etc., can all be analyzed. The concentration analyzing of target gases includes the macro-analysis and micro-analysis.

Features and Benefits

In-situ, no gas sampling
No cross interference
Fast response less than 7s
Diverse optical length (0.5 - 20m)
Reliable in all harsh conditions: high temperature & pressure,dust density, moisture and corrosion
Online calibration, no zero drift
Thousands of tailor-made solutions for various
applications

>>> Technical Specifications

Measurement Principle	Tunable Laser Absorption Spectroscopy(TDLAS)
Technical Data	Linearity	≤ ±1%F.S.
	Span drift	≤ ±1%F.S./6 months
	Repeatability	≤ 1%
	calibration period	≤ 1 time/6 month
	Explosion-proof Grade	Exd IIC T6 Gb
	Protection levels	IP66
Response Time	Warm-up time	≤ 15 min
Response Time	Response time(T90)	≤ 8~10s
Interface Signals	Analog outputs	2 outputs 4-20 mA, max signal input(electrically isolated, max. load 750Ω)
	Analog inputs	2-way 4-20mA input (temperature-pressure compensation)
	Communications	RS485/RS232/GPRS
	Relay output	3 outputs relay (24V DC/1A)
Operating Conditions	Operation temperature	-30℃ ~ +60℃
	Storage Temperature	-40℃ ~ +80℃
	Purge Gas	0.3~0.8 MPa nitrogen gas or instrument air
	Power Supply	200-240 V AC/48-63 Hz, power is base on specific configuration

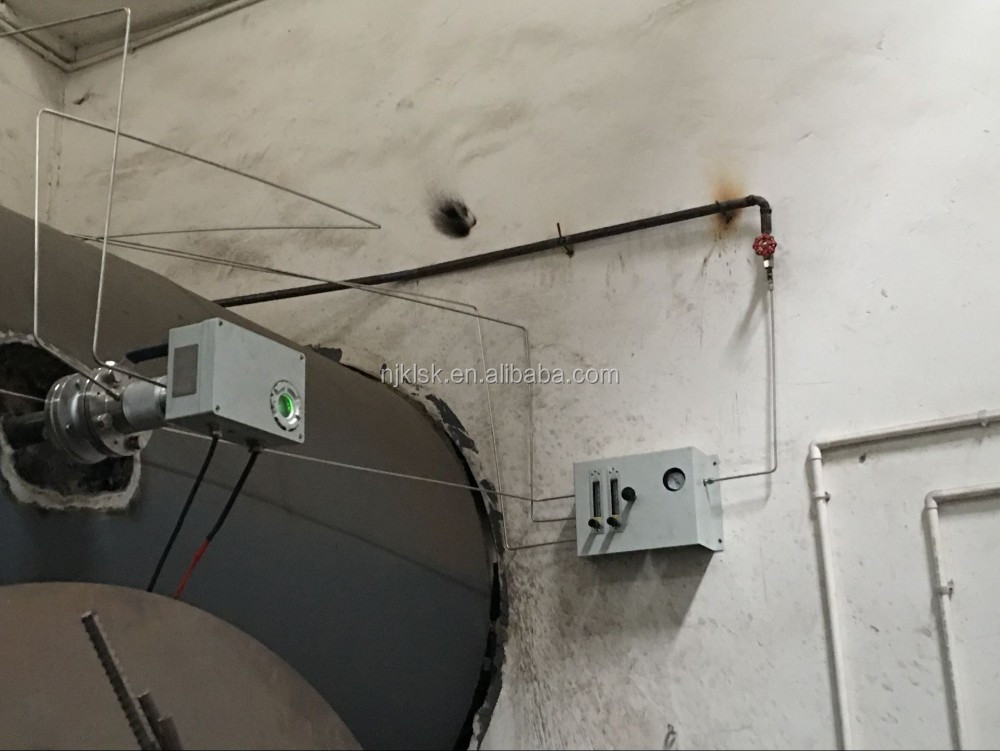

Installation	Installation Method	Sampling probe is mounted in the flue/pipe, system is installed nearby

>>>Composition Diagram
Highly Sensitive KF200 20mA Tunable Laser Gas Analyzer TDLAS IP66 Gas Testing
>>> Gas Detection Limits

Detection Gas Type	Detection Limit	Detection range
O₂	0.01%Vol.	(0-1)%Vol., (0-100)%Vol.
CO₂	10 ppm	(0-1000)ppm,(0-100)%Vol.
H₂S	20 ppm	(0-2000) ppm, (0-100)%Vol.
HCl	0.1 ppm	(0-50) ppm,(0-100)%Vol.
NH₃	0.1 ppm	(0-10) ppm, (0-100)%Vol.
C₂H₂	0.1ppm	(0-10) ppm, (0-100)%Vol.
CO	10 ppm	(0-1000)ppm, (0-100)%Vol.
H₂O	0.3 ppm	(0-50)ppm, (0-100)%Vol.
HF	0.02 ppm	(0-5)ppm, (0-10000) ppm
HCN	0.3 ppm	(0-30)ppm, (0-1)%Vol.
CH₄	0.4 ppm	(0-40)ppm, (0-100)%Vol.
C₂H₄	0.6 ppm	(0-60)ppm, (0-100)%Vol.

Remark1:The test conditions for 1m optical path, the gas pressure 1bar, gas temperature 300K

Remark2:By increasing the optical path, proportionally lower detection limit

>>> Application Areas

Refinery & Petrochemical

FCC Catalyst Regeneration
SCR NH3 Injection
Desulfurization Efficiency
Explosive Process Gas
Sulfur RecoveryFlue Gas Measurement Outlet of
Process Heaters,Fractionators, Thermal Crackers,
Utility Boilers and Incinerators
Reactant Ratio Optimization
Product Purity
HCL, HF Emission

Metallurgy

Combustion Control for Reheating Furnace, Heat
Treatment Furnace,Forging Furnace
Converter Gas Recycle
Blast Furnace Gas
Coke Oven Gas
Flue Gas of Sintering, Pelletizing
Coal Injection Safety Control
Electric Tar Precipitator (ETP) Safety Control
CDQ Circulating Gas
Gas Tank Safety Control
Calorific Value Analysis
Sulfur Recovery

Thermal Power

SCR NH3 Injection
Desulfurization Efficiency
Coal Injection Safety Control
HCL, HF Emission
