Tdlas Technology Integrated Laser Gas Analyzer for High Corrosion
Environment
Product Description
KF series Laser Gas Analyzer developed aiming at the industrial
on-line analyzing, environmental on-line monitoring.
Many types of the KF series Laser Gas Analyzer are available,
including in-situ probe, by - pass type, multi-channel and Disc
mounted type etc.Gas types like O2,CO,NH3,CO2,CH4,H2O,HC, HF etc.
can be analyzed. The concentration analyzing of target gases
contains the macro-analysis and micro-analysis.
Features
1. Adopting the TDLAS technology, the in-situ online gas analyzing
2. Double proof probe design, without positive pressure purge, no
additional data processing unit, simple compact structure, high
reliability
3. Using high-power lasers, no fiber coupling, anti-hash working
conditions (such as excessive dust condition)
4. Using patented technology of spot light path adjustment, easy
for on-site installation
Technical Specifications
| Measurement Principle | Tunable Laser Absorption Spectroscopy(TDLAS) |
| Technical Data | linearity error | ≤±1%F.S. |
| Span drift | ≤±1%F.S./6 months |
| Repeatability | ≤1% |
| calibration period | ≤1 time/6 month |
| Explosion-proof Grade | ExdIICT6 Gb |
| Protection levels | IP66 |
| Response Time | Warming-up time | ≤15 min |
| Response time(T90) | ≤8~10s |
| Interface Signals | Analog outputs | 2-wire 4-20mA signal input(Isolated, maximum load 750Ω) |
|
|
| Analog inputs | 2-way 4-20mA input( temperature-pressure compensation) |
| digital outputs | RS485/RS232/GPRS |
| Relay output | 3-wire relay(24V,1A) |
| Operating Conditions | Ambient temperature | -30ºC~+60ºC |
|
| Gas jet | 0.3~0.8MPa Industrial nitrogen inlet and purification
instrument gases etc. |
| Power | 220VAC,power is base on specific configuration |
| Installation | Installation Method | Sampling probe is mounted in the flue / pipe,system
is installed nearby |

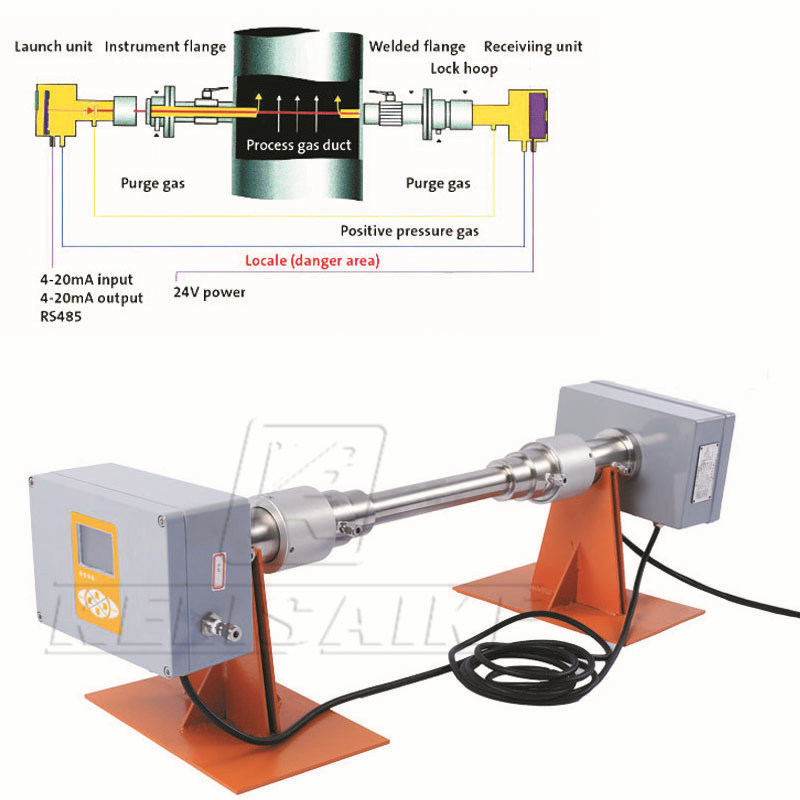

Main Process Line
Gas Detection Limits
| Detection Gas Type | Detection Limit | Detection range |
| O2 | 0.01%Vol. | (0-1)%Vol., (0-100)%Vol. |
| CO2 | 10 ppm | (0-1000)ppm,(0-100)%Vol. |
| H2S | 20 ppm | (0-2000) ppm, (0-100)%Vol. |
| HCl | 0.1 ppm | (0-50) ppm,(0-100)%Vol. |
| NH3 | 0.1 ppm | (0-10) ppm, (0-100)%Vol. |
| C2H2 | 0.1ppm | (0-10) ppm, (0-100)%Vol. |
| CO | 10 ppm | (0-1000)ppm, (0-100)%Vol. |
| H2O | 0.3 ppm | (0-50)ppm, (0-100)%Vol. |
| HF | 0.02 ppm | (0-5)ppm, (0-10000) ppm |
| 0.3 ppm | (0-30)ppm, (0-1)%Vol. |
| CH4 | 0.4 ppm | (0-40)ppm, (0-100)%Vol. |
| C2H4 | 0.6 ppm | (0-60)ppm, (0-100)%Vol. |
Remark1:The test conditions for 1m optical path, the gas pressure
1bar, gas temperature 300K
Remark2:By increasing the optical path, proportionally lower
detection limit
